Digital Strike Counter
Designed for use with lightning rods, ESE lightning protection systems, Faraday cages and other external lightning protection systems, the counter features a compact and robust construction suitable for harsh environmental conditions. It is designed to operate across temperatures ranging from -40°C to +85°C and uses an IP67 ABS enclosure for protection against dust and water.
The device provides an 8-digit counting capacity of up to 99,999,999 impulses and is designed to retain operational data even in the event of a power failure. According to the product datasheet, no external power supply is required for operation.
| Products Price | ₹5,500.00 | ||
Products Description
The ADAS Digital Lightning Strike Counter is designed to detect and record lightning discharge activity in external lightning protection systems. Installed on the down conductor of a lightning protection system, the device detects the discharge current generated during a lightning event and automatically records the strike count on its digital display.
The strike counter provides important information about whether a lightning protection installation has experienced a lightning strike. This helps facility and maintenance teams determine whether the lightning protection system requires additional inspection or verification beyond routine periodic maintenance.

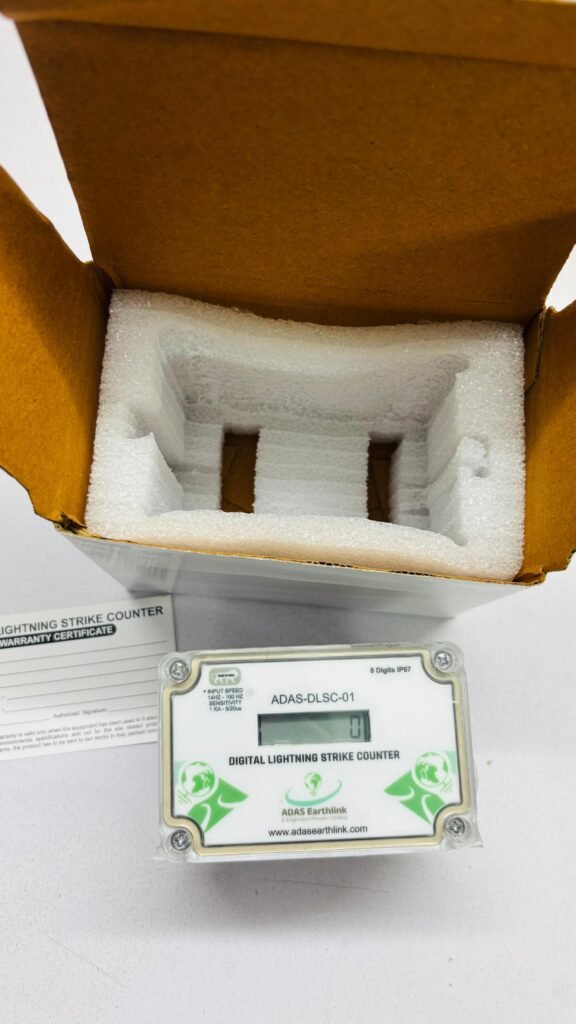

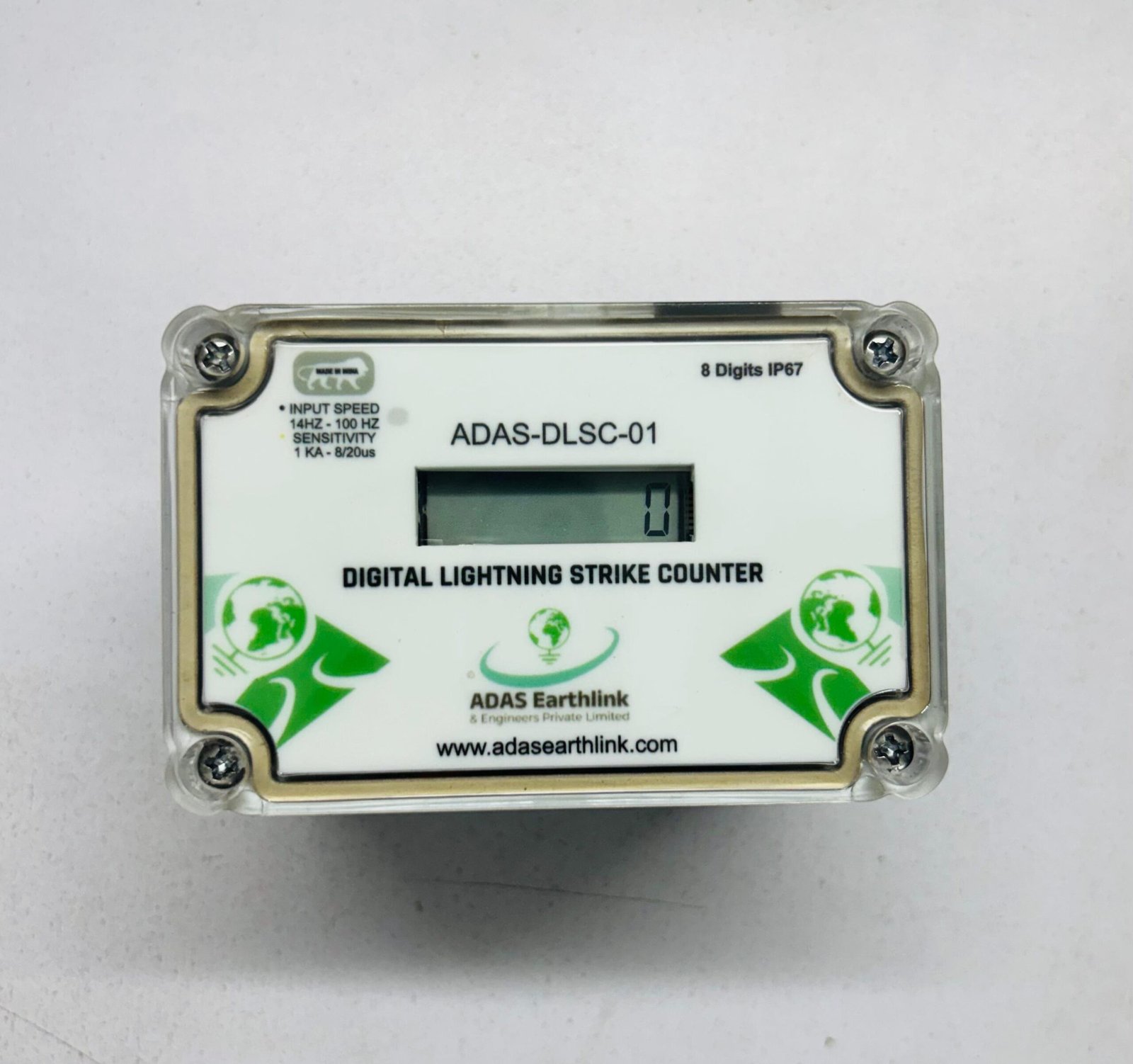

Product Video & Images
Key Features – Lightning Strike Counter
- 8-Digit Strike Counter: Records up to 99,999,999 lightning impulses for long-term lightning activity monitoring.
- Accurate Lightning Detection: Designed to detect and count discharge current passing through the lightning protection system.
- Wide Detection Range: Detects lightning impulses starting from 1 kA up to 100 kA according to the datasheet.
- No External Power Supply Required: Designed to operate without connection to an external power source.
- IP67 Enclosure: ABS Siemens Gray enclosure provides protection against dust and water.
- Wide Operating Temperature: Suitable for atmospheric conditions ranging from -40°C to +85°C.
- Compact & Robust Construction: Designed for durability and reliable operation in lightning protection installations.
- Easy Down-Conductor Installation: Can be easily adapted to the down conductor of different lightning protection systems.
- System Monitoring: Helps monitor lightning activity and determine when the lightning protection system may require inspection.
- Reliable Data Retention: Operational data is retained even if a power failure occurs.
- Stainless Steel Hardware: Supplied with SS 304 clamps and SS 304 nut-bolts.
- 2-Year Warranty: The product datasheet specifies a warranty period of 2 years.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Digital Lightning Strike Counter |
| Usage / Application | Industrial |
| Operating Temperature | -40°C to +85°C |
| Current | 200 kA |
| Dimensions | 100 L × 50 W × 60 H |
| Range of Intensity | 1 kA (8/20 µs) – 100 kA |
| Discharge Current | 1500 A Max |
| Battery Type | Li-ion |
| Standard | IEC/EN 61000-4-5:2014 |
| Weight | 0.700 kg |
| Enclosure | IP67 ABS Siemens Gray |
| Clamps | SS 304 |
| Nut-Bolts | SS 304 |
| Count Number | 0–99,999,999 |
| Number of Digits | 8 Digits |
| Battery Life | 6–8 Years |
| Warranty | 2 Years |
How It Operates?
Usually, the digital strike counter is situated near ground level, right on the lightning protection system’s down conductor. The massive electrical current flows down the down conductor to the earth when a lightning strike is stopped by the air termination device, which is the lightning rod on the roof.
By identifying the magnetic field or voltage impulse produced by this high-current flow, the strike counter operates. Since it is a passive device, no external power source is needed. Rather, the lightning strike’s electricity powers it, activating its internal circuitry and increasing the digital display.
Product Features
| Feature | Details |
|---|---|
| Display Type | Digital |
| Counting Capacity | Up to 99,999,999 impulses |
| Digits | 8 |
| Enclosure Material | ABS |
| Enclosure Protection | IP67 |
| Enclosure Colour | Siemens Gray |
| Installation | Down Conductor |
| Clamps | SS 304 |
| Nut-Bolts | SS 304 |
| Operating Range | -40°C to +85°C |
| Power Requirement | No External Power Supply Required |
| Battery Type | Li-ion |
| Battery Life | 6–8 Years |
| Application | External Lightning Protection Systems |
| Compatible Systems | Lightning Rods, ESE Systems, Faraday Cages |
| Warranty | 2 Years |
Applications of Digital Strike Counter
- ESE Lightning Protection Systems for commercial, industrial, and public infrastructure.
- Airports, Stadiums & High-Rise Buildings exposed to frequent lightning activity.
- Oil & Gas Refineries and Power Plants needing system health monitoring.
- Telecommunication Towers to track lightning exposure over time.
- Solar Power Plants to ensure protection system effectiveness and maintenance scheduling.
